| Greifer | SG-10 |
SG-15 |
SG-20 |
SG-25 |

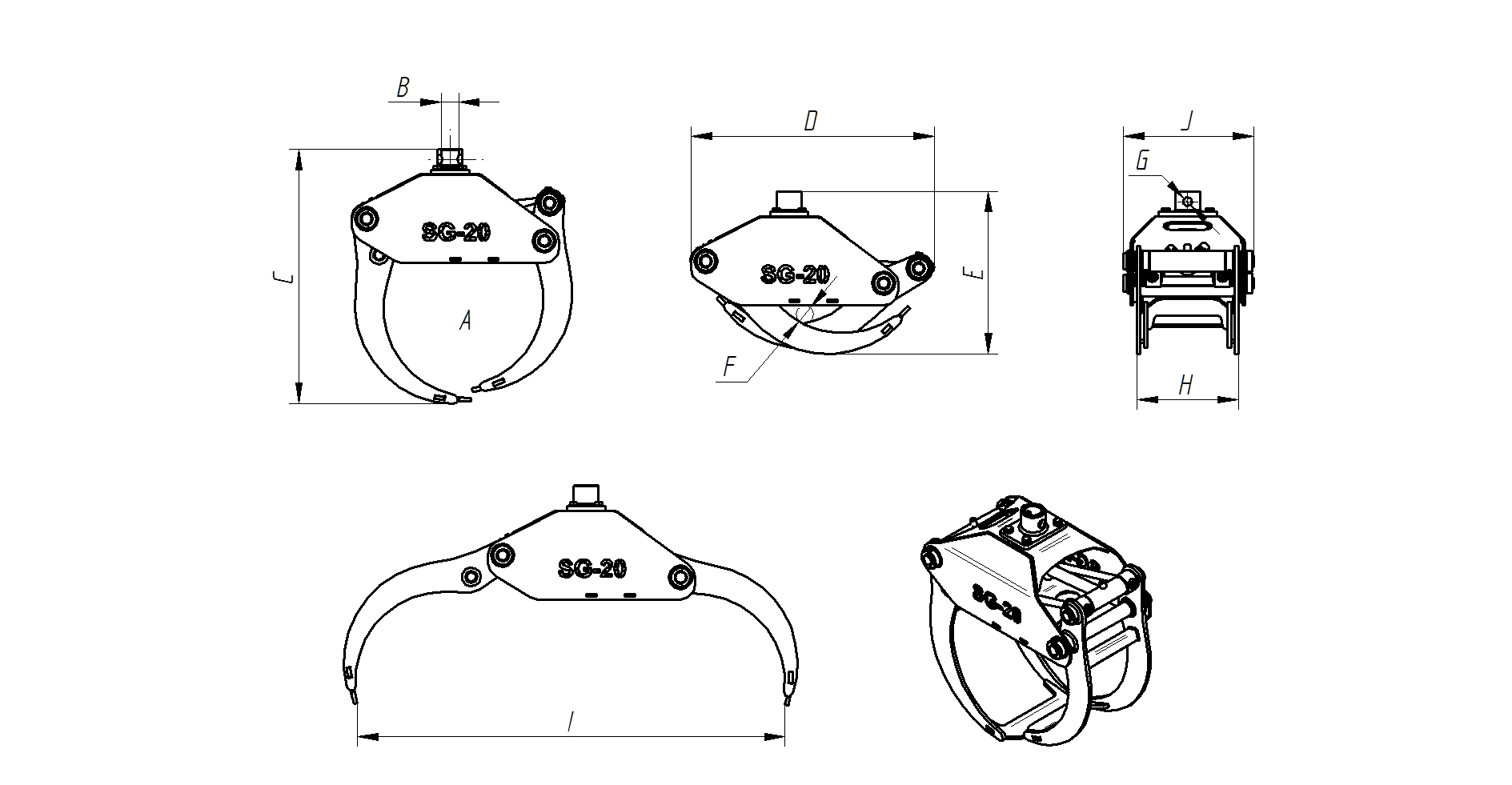

| A, m2 | 0.1 | 0.15 | 0.2 | 0.25 |
| B, mm | 40 | 50 | 50 | 60 |
| C, mm | 715 | 815 | 865 | 970 |
| D, mm | 620 | 700 | 830 | 860 |
| E, mm | 445 | 500 | 554 | 639 |
| F, mm | 20 | 35 | 65 | 95 |
| G, mm | 20 | 25 | 30 | 30 |
| H, mm | 240 | 345 | 435 | 300 |
| I, mm | 910 | 1280 | 1455 | 1670 |
| J, mm | 330 | 422 | 444 | 397 |
| Mass, kg | 60 | 85 | 114 | 142 |
